OPPO Reno14 F 5G
(CPH2743)

OPPO Reno14 F 5G (CPH2743)

OPPO Reno14 F 5G

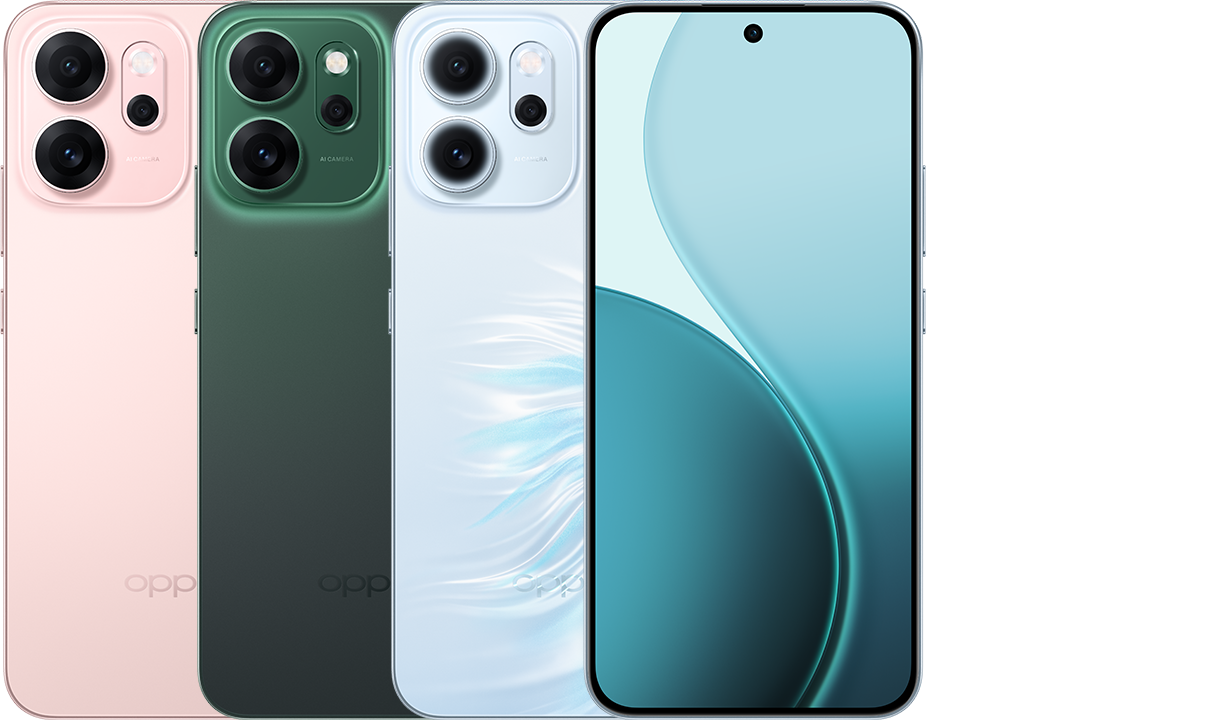

Glossy Pink | Luminous Green | Opal Blue

* Product pictures are for reference only. Please refer to the actual product.

Size and Weight

Height

about 158.12mm

Width

about 74.97mm

Thickness

about 7.78mm (Opal Blue)
about 7.69mm (Glossy Pink)
about 7.74mm (Luminous Green)

Weight

about 180g

* Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.

Storage

RAM and ROM Capacities

8GB + 256GB
12GB + 256GB
12GB + 512GB

RAM Type

LPDDR4X

ROM Specifications

UFS 3.1

Phone Storage Card

Supported

USB OTG

Supported

* The available internal storage may be smaller as part of the internal storage is occupied by software. Actual memory space may change due to application updates, user operations, and other related factors.

Display

Size

6.57 inches

Screen Ratio

93.04%

Resolution

2372 x 1080 Pixels

Refresh Rate

Maximum: 120Hz (60/90/120Hz)

Touch Sampling Rate

Maximum: 240Hz
Default: 120Hz

Colour Gamut

Natural mode: 100% sRGB
Vivid mode: 100% DCI-P3

Colour Depth

1.07 billion colours (10-bit)

Pixel Density

397 PPI

Brightness

Normal brightness: 600nits (typical)
HBM: 1400nits (typical)

Panel

AMOLED (Flexible screen)

Cover Glasses

AGC Dragontrail DT-STAR D+

Camera

Rear

Wide angle: 50MP; f/1.8; FOV 79°; 5P lens; AF supported; 2-axis OIS supported
Ultra-wide angle: 8MP; f/2.2; FOV 112°; 5P lens
Macro: 2MP; f/2.4; FOV 89°; 3P lens

Front

32MP, f/2.0, FOV 90°, 5P lens; AF supported

Shooting Mode

Rear: Photo, Video, Portrait, Night, PANO, SLO-MO, Dual-view video, TIME-LAPSE, STICKER, HI-RES, Google Lens, Underwater, PRO, Scan, Macro
Front: Photo, Video, Portrait, Night, PANO, Dual-view video, TIME-LAPSE, STICKER, Retouch, Screen Fill Light

Video

Rear

Supported: 4K 30fps, 1080P 60fps, 1080P 30fps, 720P 60fps, 720P 30fps
EIS/OIS video: 4K 30fps, 1080P 60fps, 1080P 30fps, 720P 60fps, 720P 30fps
SLO-MO: 720P 240fps, 720P 120fps, 1080P 120fps
TIME-LAPSE: 1080P 30fps
Support Dual-view video shooting
Digital Zoom: Support Up to 10X

Front

Supported: 1080P 30fps, 720P 30fps
EIS/OIS video: 1080P 30fps, 720P 30fps
Support Dual-view video shooting
Support TIME-LAPSE 1080P 30fps
Support 0.8x and 1x

Chips

SoC

Qualcomm Snapdragon® 6 Gen 1 Mobile Platform

CPU

8 cores

GPU

Adreno™ 710@676MHz

Battery

Battery

6000mAh/23.52Wh (typical)
5830mAh/22.86Wh (rated)

Fast Charge

45W SUPERVOOCTM, 33W SUPERVOOCTM, 15W VOOC, 45W PPS, 13.5W PD 2.0 (9V, 1.5A), 13.5W QC 2.0 (9V, 1.5A)

* The SUPERVOOC word mark and logos are trademarks owned by Guangdong OPPO Mobile Telecommunications Corp., Ltd.

Biometrics

Fingerprint

Supported

Facial Recognition

Supported

Sensors

Proximity sensor
Ambient light sensor
Colour temperature sensor
E-compass
Accelerometer
Gyroscope
In-display optical fingerprint sensor

Cellular Network

SIM 2

Supported

SIM Card Type

Nano-SIM card

Frequency Band

[Version 1]
2G GSM: 850/900/1800/1900MHz
3G WCDMA: Band 1/2/4/5/6/8/19
4G LTE FDD: Band 1/2/3/4/5/7/8/12/17/18/19/20/26/28/66
4G LTE TDD: Band 38/39/40/41/42/48
5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n26/n28/n38/n40/n41/n66/n71/n77/n78

[Version 2]
2G GSM: 850/900/1800MHz
3G WCDMA: Band 1/5/8
4G LTE FDD: Band 1/3/5/7/8/20/28
4G LTE TDD: Band 38/40/41/42
5G NR: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n77/n78

[Version 3]
2G GSM: 900/1800MHz
3G WCDMA: 900/2100MHz
4G LTE FDD: Band 1/3/5/8
4G LTE TDD: Band 40
5G NR: n1/n3/n5/n8/n40

* Functions available on the live network depend on the situations of carrier's network and related services deployment.

Connectivity

WLAN

Wi-Fi 2.4G, Wi-Fi 5G, Wi-Fi 5 (802.11ac), 802.11b/g/a/n
WLAN 2.4G, WLAN 5.1G, WLAN 5.4G, WLAN 5.8G, WLAN tethering
Wi-Fi 2.4GHz 20M, Wi-Fi 2.4GHz 40M, Wi-Fi 5GHz 20M, Wi-Fi 5GHz 40M, Wi-Fi 5GHz 80M
1 x 1 SISO, WLAN Display

Bluetooth® Version

Bluetooth® 5.1, Low Energy

Bluetooth® Audio Codec

SBC, AAC, aptX, aptX HD, LDAC

USB Interface

USB Type-C

Earphone Jack

Type-C
* Only digital headphones are supported, analog headphones are not supported.

NFC

Supported

Operating System

ColorOS 15.0

* The operating system information is for reference only, subject to the actual product. If updated, no further notice will be given.

Location Technology

GNSS

Single band: Beidou, GPS, GLONASS, Galileo, QZSS

Others

Supports A-GNSS assisted positioning, WLAN positioning, cellular network positioning

In the Box

Phone x 1
Charger x 1
USB data cable x 1
SIM Ejector Tool x 1
Quick Guide x 1
Safety Guide x 1
Protective Case x 1

* May vary in different markets. Subject to the actual product.

Additional Remarks

In order to make the front of the phone more compact, the light sensor hole is hidden at the top of the screen. Screen protectors with poor light transmission, such as those that are coloured or darkened, may block the light sensor hole and affect the normal use of the phone.
