OPPO Reno12 F
(CPH2687)

OPPO Reno12 F (CPH2687)

OPPO Reno12 F

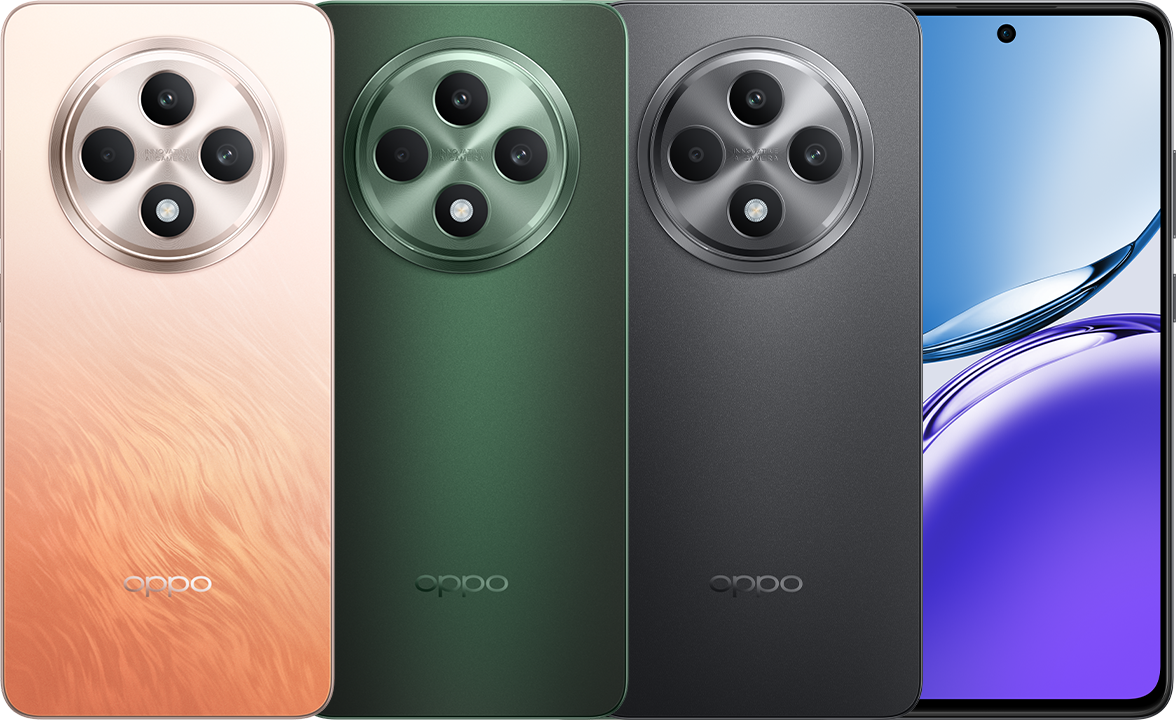

Amber Orange | Olive Green | Matte Grey

* Product pictures are for reference only. Please refer to the actual product.

undefined

Size and Weight

Height

about 163.1mm

Width

about 75.8mm

Thickness

about 7.69mm (Olive Green | Matte Grey)
about 7.76mm (Amber Orange)

Weight

about 187g

* Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.

Storage

Ram and Rom Capacities

8GB + 256GB
8GB + 512GB

Ram Type

LPDDR4X@2133MHz, 128Mb x 8DQ x 8banks x 2channels

Rom Specifications

UFS 2.2@2Lanes HS-G1/G2/G3 Rate A/B

Phone Storage Card

Supported

USB OTG

Supported

* The available internal storage may be smaller as part of the internal storage is occupied by software. Actual memory space may change due to application updates, user operations, and other related factors.

Display

Size

6.67"

Screen Ratio

92.2%

Resolution

FHD + (2400 × 1080)

Refresh Rate

Max: 120Hz
Options: 60/120Hz

Touch Sampling Rate

Max: 180Hz
Default: 120Hz

Colour Gamut

Vivid Mode: 100% DCI-P3 coverage
Natural Mode: 100% sRGB coverage

Colour Depth

16.7 million colors (8-bit)

Pixel Density

394PPI

Brightness

Normal: 600nits
HBM: 1200nits

Panel

Flat OLED
Rigid AMOLED

Cover Glasses

AGC DT-Star2

Camera

Rear

Main camera: 50MP; f/1.8; FOV 76°; 5P lens; AF supported; open-loop focus motor; OIS not supported
Ultra-wide angle camera: 8MP; f/2.2; FOV 112°; 5P lens
Macro camera: 2MP; f/2.4; FOV 89°; 3P lens; FF; macroshot at a minimum

Front

32MP, f/2.4; FOV 82°; 5P lens

Shooting Mode

Rear: Photo, Video, Night, Pro, Pano, Portrait, Time-lapse, Slo-mo, Text Scanner, Extra HD, Macro, and Sticker
Front: Photo, Video, Night, Pano, Portrait, Time-lapse, and Sticker

Video

Rear

1080p@30fps and 720p@30fps supported
Video stabilization not supported
Slo-mo video: 720p@120fps
Time-lapse video: 1080p@30fps
Dual-view video: 720p@30fps

Front

Up to 1080p/720p@30fps
Default: 720p@30fps (portrait retouch mode off by default)
Video stabilization not supported
1080p@60fps not supported
Video zoom supported
Slow-mo video not supported

Chips

SoC

Qualcomm® KryoTM 685 CPU@2.8GHz

CPU

8 cores

GPU

AdrenoTM 610@1.26GHz

Battery

Battery

4870mAh/19.05Wh (Minimum)
5000mAh/19.55Wh (Typical)

Fast Charge

Supported protocols: SUPERVOOCTM, VOOC, PPS, and PD2.0

* The SUPERVOOC word mark and logos are trademarks owned by Guangdong OPPO Mobile Telecommunications Corp., Ltd.

Biometrics

Fingerprint

Supported

Facial Recognition

Supported

Sensors

Geomagnetic sensor
In-display proximity sensor
In-display light sensor
Gravity sensor
Pedometer

Cellular Network

SIM 2

Supported

SIM Card Type

Nano-SIM card

Frequency Band

[Version 1]
GSM: 850/900/1800/1900MHz (diversity not supported for PCS frequencies)
WCDMA: Bands 1/5/8
FDD-LTE: Bands 1/3/5/7/8/20/28
TD-LTE: Bands 38/40/41

[Version 2]
GSM:900/1800MHz
WCDMA:900/2100MHz
LTE FDD: Bands 1/3/5/8
LTE TDD: Band 40

* Functions available on the live network depend on the situations of carrier's network and related services deployment.

Connectivity

WLAN

Wi-Fi 5 (802.11ac), 802.11 a/b/g/n/
WLAN 2.4G/WLAN 5G
WLAN Display
WLAN tethering
Wi-Fi 5GHz 80MHz

Bluetooth® Version

Bluetooth® v5.0 and BLE

Bluetooth® Audio Codec

SBC, AAC, and aptX

USB Interface

USB Type-C

Earphone Jack

Type-C

Operating System

ColorOS 14.0

* The operating system information is for reference only, subject to the actual product. If updated, no further notice will be given.

Location Technology

GNSS

BeiDou, GPS, GLONASS, Galileo, and QZSS

Others

A-GPS (A-GNSS), WLAN, and cellular network positioning

In the Box

Phone x 1
Charger x 1
USB Data Cable x 1
SIM Ejector Tool x 1
Quick Guide x 1
Safety Guide x 1
Protective Case x 1

* May vary in different markets. Subject to the actual product.

Additional Remarks

In order to make the front of the phone more compact, the light sensor hole is hidden at the top of the screen. Screen protectors with poor light transmission, such as those that are colored or darkened, may block the light sensor hole and affect the normal use of the phone.
